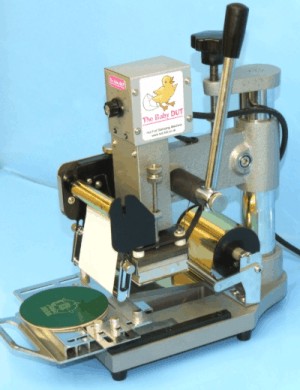

The Baby DUT The Baby DUT is a compact table-top hot foil printing machine with an automatic foil rewind system. The Baby DUT takes a table-top space of just 6" x 10", making it suitable for even the smallest of desk spaces. The Baby DUT is a great machine for a beginner or for someone who has limited budget/usage. It is a light duty machine, with a small print area and it is capable of printing onto a wide range of products and surfaces including paper, card, leather, PVC, plastic etc. This makes it great for printing onto business cards, stationery, photo mounts, promotional products as well as greeting cards and lots more. The Baby DUT is a vertical type of hot foil press which is great for printing onto books, diaries as well as other products mentioned above. Foiling with Blocks

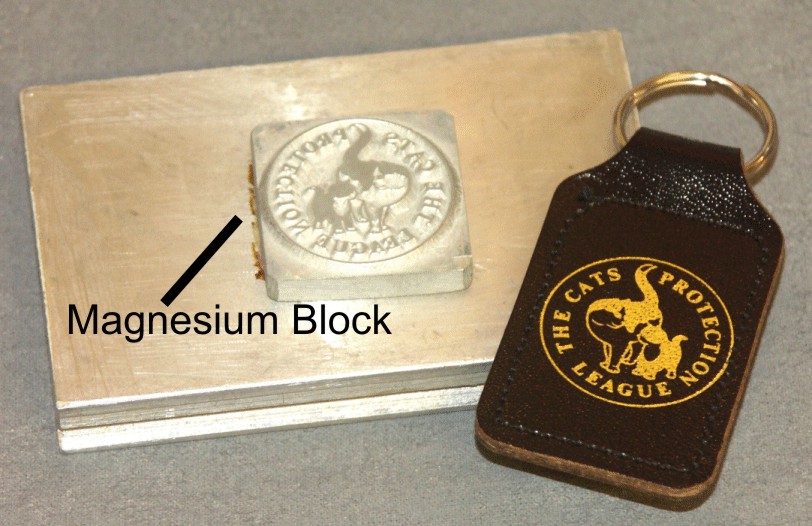

The Baby DUT uses metal dies which can be
made from your black and white artwork. We will give you details of
companies who make these (based in UK) and they take about 3-4 days to
delivery them to you in a jiffy bag. The cost, for a business card size
plate/block is between £9.00+VAT for a thin metal plate to about £15.00+VAT
for a thick quarter inch plate. The latter will last longer and not bend
so easily.
The die is attached to the machine using a
special tape and the heated to the correct temperature. Foil colour of
your choice is fed into the machine. When you pull the handle, the hot
block presses onto your card, paper, plastic, PVC or leather product and
this is what creates the print.
When you get a block made, you can
incorporate any font, clipart or design.

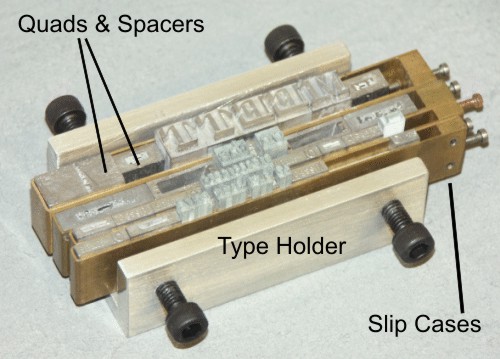

Foiling with Type We also offer an optional Type Holder with the Baby DUT at a cost of £29.99+VAT when purchased at the same time as the Baby DUT or £39.99+VAT if purchased at a later date. Type holder is simple device which is designed to hold lines of type (within slip cases). We recommend that it is suitable only for two to three lines of type, not exceeding the width of the type holder. Slip Cases, Type, Quads & Spacers are all optional extras which can be purchased from our recommended suppliers - we do not supply them ourselves. The Baby DUT is designed mainly to print onto soft substrates such as leather key fobs, coasters, bookmarks etc. It may also be suitable for other substrates and surfaces but with limitations. The optional type holder is designed to be affixed onto the die holder (supplied) using two screws. In cases where the type holder is purchased at a later date, we will require the die holder to be sent back to us so that we can drill and tap two holes which will enable the type holder to be securely held onto the die holder. When using the type holder with type, you may need to adjust the vertical height in order to increase the daylight opening - this depends on the thickness of the product which you wish to print onto.
The Cost The Baby DUT costs just £399.00+VAT. The Baby DUT is also supplied with the following as standard:-
* Tool Kit
PLUS FREE
STARTER KIT:-
Optional
|
|
Specifications:- Width: 6" (15cm) Depth: 10" (25cm) Height: 12.5" (32cm) Print approximately 2" thick product when using blocks. Print approximately 1" thick product when using Type Throat: Maximum 8cm to centre of Type/Die holder.

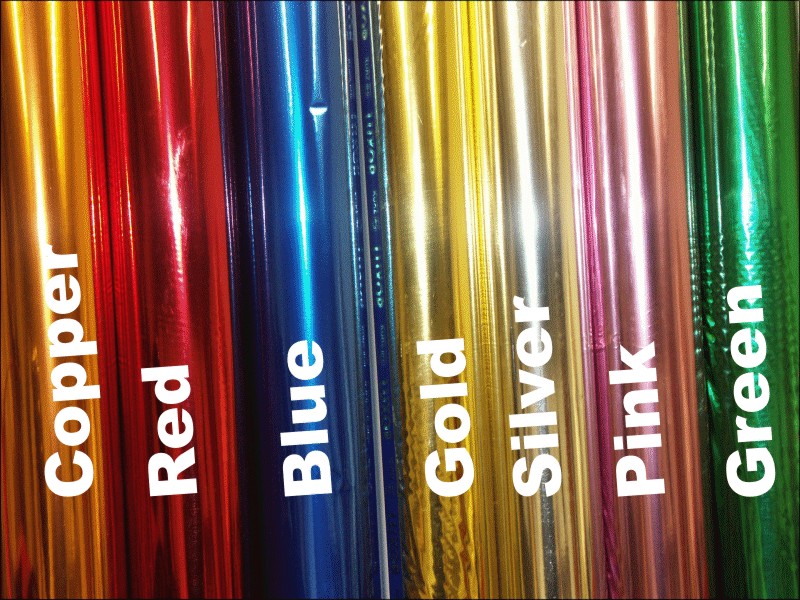

We also supply foils in
the
Currently, we stock foils in
the Foils are supplied in
standard 400 feet The cost per inch wide x 400
length
Please
read this information carefully before purchasing Our
company policy is one of being totally transparent With your purchase, we offer
you a list of recommended suppliers Please Note: We do not make blocks ourselves - you will need to contact our recommended suppliers for them to be made for you from your exact artwork.
|
||
|
|
|
|||||
|
